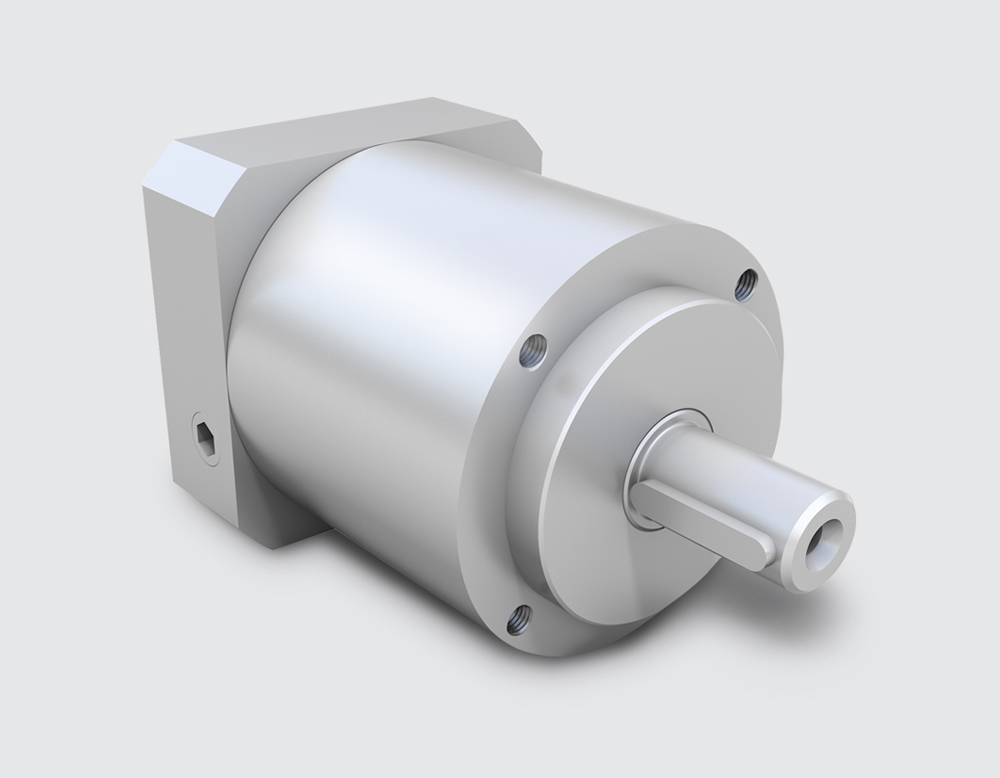

HRL 090 Frame

The HRL series from Nidec Drive Technology is a planetary product that excels in corrosive, high pressure washdown environments. Made completely from 303 grade austenitic stainless steel, HRL is a safe solution for servo drive systems close to or fully integrated in the process. A seamless, single piece housing helps reduce build-up of bacteria while its IP66 rating allows for high pressure cleaning with water, steam or caustic chemicals. HRL has flexible adaptation to standard B5 style servomotors as well as B14 style stainless servomotors. Available in three sizes and a complete range of reduction ratios, HRL is a robust, reliable, maintenance-free solution allowing our customers to reduce risk and increase productivity.

  • All-stainless construction
  • IP66 Ingress Protection with Viton seals
  • NSF H1 Synthetic Food Grade Grease
  • Mounting for standard servomotors with B5 flanges or stainless servomotors with B14 flanges
  • Cost-effective solution for highly corrosive environments with demanding washdown regimens

Technical Data

HRL 090 Frame Size, Single Stage Specifications

Reduction RatioUnits345710
Nominal Output Torque 1[Nm]4054545440
Maximum Output Torque 2[Nm]7010010010075
Maximum Torque[Nm]125125125125125
Emergency Stop Torque 3[Nm]160216216216160
Nominal Input Speed[rpm]30003000300030003000
Maximum Input Speed[rpm]60006000600060006000
No Load Running Torque[Nm]0.170.170.170.170.17
Maximum Radial Load[N]910910910910910
Maximum Axial Load[N]500500500500500
Moment of Inertia (≤Ø 14)[kgcm2]0.32 – 0.430.32 – 0.430.32 – 0.430.32 – 0.430.32 – 0.43
Moment of Inertia (≤Ø 19)[kgcm2]0.52 – 0.650.52 – 0.650.52 – 0.650.52 – 0.650.52 – 0.65
Moment of Inertia (≤ Ø 24)[kgcm2]–––––
Moment of Inertia (≤ Ø 32)[kgcm2]–––––
Efficiency[%]9292929292
Torsional Rigidity[Nm/arc-min]1.3 – 2.41.3 – 2.41.3 – 2.41.3 – 2.41.3 – 2.4
Maximum Torsional Backlash[arc-min]Standard: ≤ 10
Reduced: ≤ 6		Standard: ≤ 10
Reduced: ≤ 6		Standard: ≤ 10
Reduced: ≤ 6		Standard: ≤ 10
Reduced: ≤ 6		Standard: ≤ 10
Reduced: ≤ 6
Noise LeveldB [A]≤ 64≤ 64≤ 64≤ 64≤ 64
Service Lifehrs30,00030,00030,00030,00030,000
Protection ClassIPIP66IP66IP66IP66IP66
Seal Material–VitonVitonVitonVitonViton
Lubrication–NSF H1 Food Grade GreaseNSF H1 Food Grade GreaseNSF H1 Food Grade GreaseNSF H1 Food Grade GreaseNSF H1 Food Grade Grease
Output Shaft Material–303 Grade Stainless Steel303 Grade Stainless Steel303 Grade Stainless Steel303 Grade Stainless Steel303 Grade Stainless Steel
Housing Material–303 Grade Stainless Steel303 Grade Stainless Steel303 Grade Stainless Steel303 Grade Stainless Steel303 Grade Stainless Steel
Ambient Temperature[°C]-20 to +90-20 to +90-20 to +90-20 to +90-20 to +90
Permitted Housing Temperature[°C]9090909090
Weight[kg]2.0 – 2.32.0 – 2.32.0 – 2.32.0 – 2.32.0 – 2.3

HRL 090 Frame Size, Two Stage Specifications

Reduction RatioUnits1216202535405070100
Nominal Output Torque 1[Nm]8010010010010010010010064
Maximum Output Torque 2[Nm]10012512512512512512512580
Maximum Torque[Nm]125125125125125125125125125
Emergency Stop Torque 3[Nm]160216216216216216216216160
Nominal Input Speed[rpm]300030003000300030003000300030003000
Maximum Input Speed[rpm]600060006000600060006000600060006000
No Load Running Torque[Nm]0.330.330.330.330.330.330.330.330.33
Maximum Radial Load[N]150015001500150015001500150015001500
Maximum Axial Load[N]100010001000100010001000100010001000
Moment of Inertia (≤Ø 14)[kgcm2]0.69 – 1.150.69 – 1.150.69 – 1.150.69 – 1.150.69 – 1.150.69 – 1.150.69 – 1.150.69 – 1.150.69 – 1.15
Moment of Inertia (≤Ø 19)[kgcm2]0.89 – 1.380.89 – 1.380.89 – 1.380.89 – 1.380.89 – 1.380.89 – 1.380.89 – 1.380.89 – 1.380.89 – 1.38
Moment of Inertia (≤ Ø 24)[kgcm2]1.81 – 2.671.81 – 2.671.81 – 2.671.81 – 2.671.81 – 2.671.81 – 2.671.81 – 2.671.81 – 2.671.81 – 2.67
Moment of Inertia (≤ Ø 32)[kgcm2]–––––––––
Efficiency[%]929292929292929292
Torsional Rigidity[Nm/arc-min]3.4 – 7.13.4 – 7.13.4 – 7.13.4 – 7.13.4 – 7.13.4 – 7.13.4 – 7.13.4 – 7.13.4 – 7.1
Maximum Torsional Backlash[arc-min]Standard: ≤ 10
Reduced: ≤ 6		Standard: ≤ 10
Reduced: ≤ 6		Standard: ≤ 10
Reduced: ≤ 6		Standard: ≤ 10
Reduced: ≤ 6		Standard: ≤ 10
Reduced: ≤ 6		Standard: ≤ 10
Reduced: ≤ 6		Standard: ≤ 10
Reduced: ≤ 6		Standard: ≤ 10
Reduced: ≤ 6		Standard: ≤ 10
Reduced: ≤ 6
Noise LeveldB [A]≤ 65≤ 65≤ 65≤ 65≤ 65≤ 65≤ 65≤ 65≤ 65
Service Lifehrs30,00030,00030,00030,00030,00030,00030,00030,00030,000
Protection ClassIPIP66P66P66P66P66P66P66P66P66
Seal Material–VitonVitonVitonVitonVitonVitonVitonVitonFDA Viton
Lubrication–NSF H1 Food Grade GreaseNSF H1 Food Grade GreaseNSF H1 Food Grade GreaseNSF H1 Food Grade GreaseNSF H1 Food Grade GreaseNSF H1 Food Grade GreaseNSF H1 Food Grade GreaseNSF H1 Food Grade GreaseNSF H1 Food Grade Grease
Output Shaft Material–303 Grade Stainless Steel303 Grade Stainless Steel303 Grade Stainless Steel303 Grade Stainless Steel303 Grade Stainless Steel303 Grade Stainless Steel303 Grade Stainless Steel303 Grade Stainless Steel303 Grade Stainless Steel
Housing Material–303 Grade Stainless Steel303 Grade Stainless Steel303 Grade Stainless Steel303 Grade Stainless Steel303 Grade Stainless Steel303 Grade Stainless Steel303 Grade Stainless Steel303 Grade Stainless Steel303 Grade Stainless Steel
Ambient Temperature[°C]-20 to +90-20 to +90-20 to +90-20 to +90-20 to +90-20 to +90-20 to +90-20 to +90-20 to +90
Permitted Housing Temperature[°C]909090909090909090
Weight[kg]3.9 – 4.73.9 – 4.73.9 – 4.73.9 – 4.73.9 – 4.73.9 – 4.73.9 – 4.73.9 – 4.73.9 – 4.7
  1. Value refers to n1=3000 1/min and S1-mode
  2. 1000x per hour
  3. Allowed 500 times
