VRS series inline planetary gear reducer vertical view
VRS series inline planetary gear reducer horizontal side view

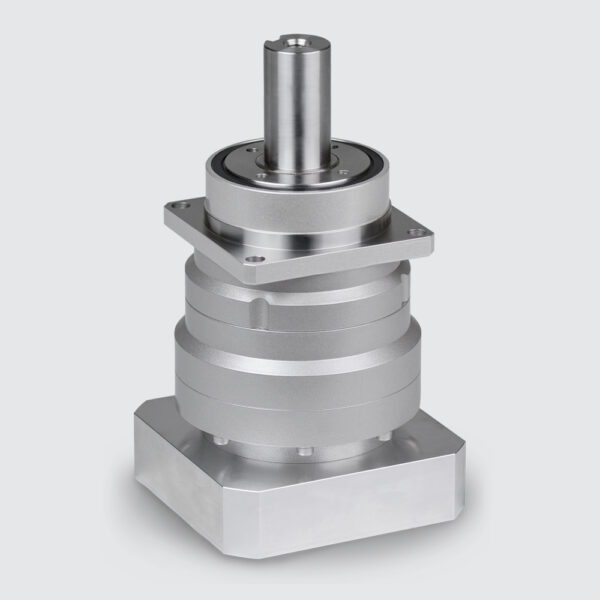

  1. VRS series inline planetary gear reducer vertical view

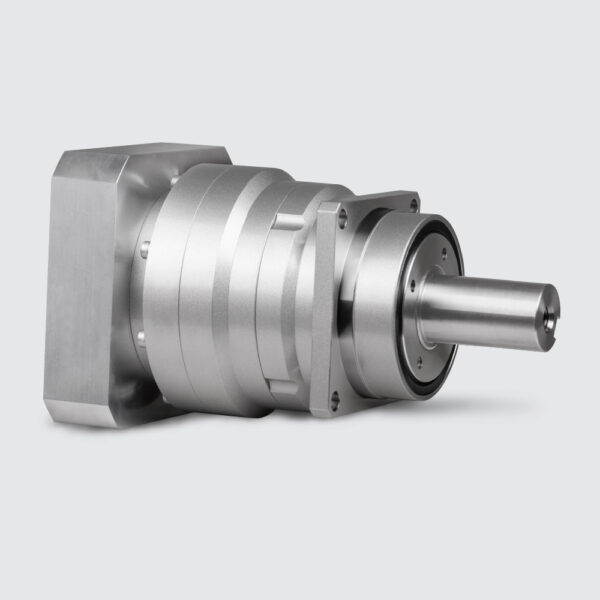

  2. VRS series inline planetary gear reducer horizontal side view

VRS Series

Inline Planetary Gear Reducer

The VRS Series is a high-performance inline planetary gear reducer designed for demanding positioning accuracy and high dynamic loads in servo-driven automation systems.

With ≤2 arc-minute backlash, the VRS delivers exceptional positioning precision for machine tool, robotics, and other high-dynamic motion control applications.

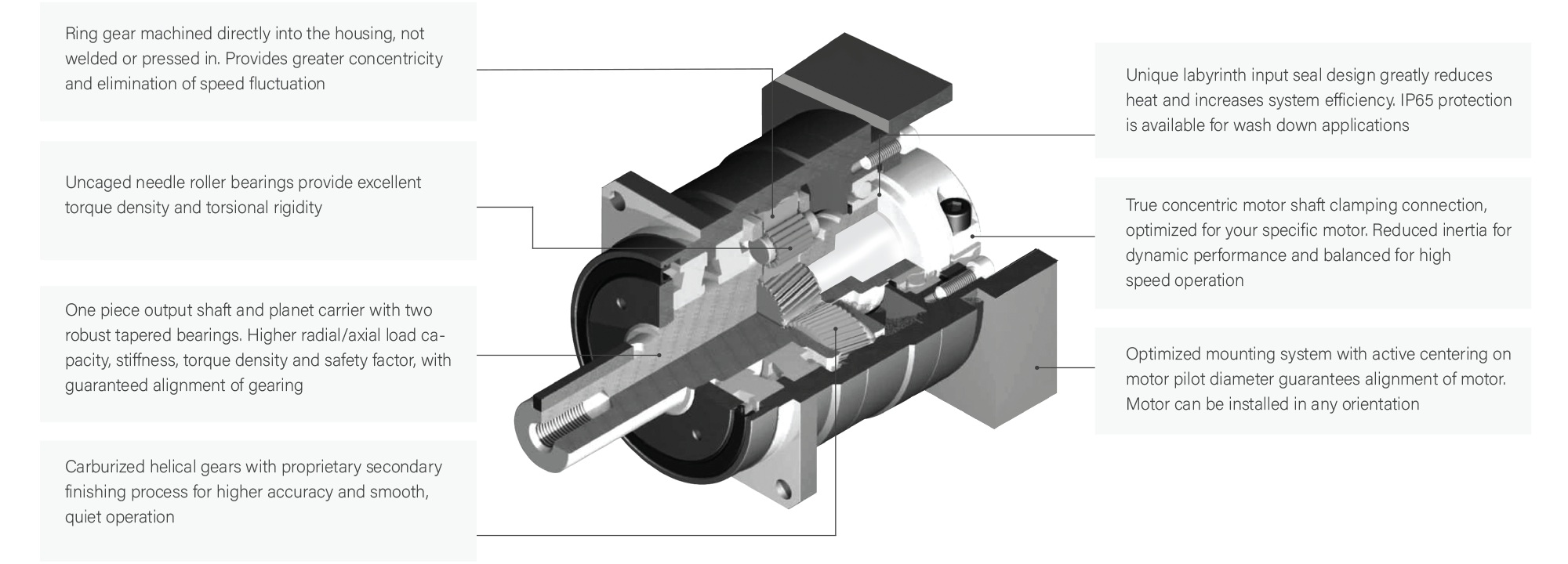

Dual rows of tapered roller bearings provide excellent rigidity and load capacity, enabling smooth and stable operation even under challenging radial and axial forces. This robust bearing configuration supports maximum acceleration torques up to 3700 Nm, making the VRS well suited for higher-capacity servomotor systems and continuous-duty applications where heat reduction and reliability are critical.

Frame Sizes

060
075
100
140
180
210
240
VRS Series Catalog Download (2.02 MB)
Request a Quote for VRS Series

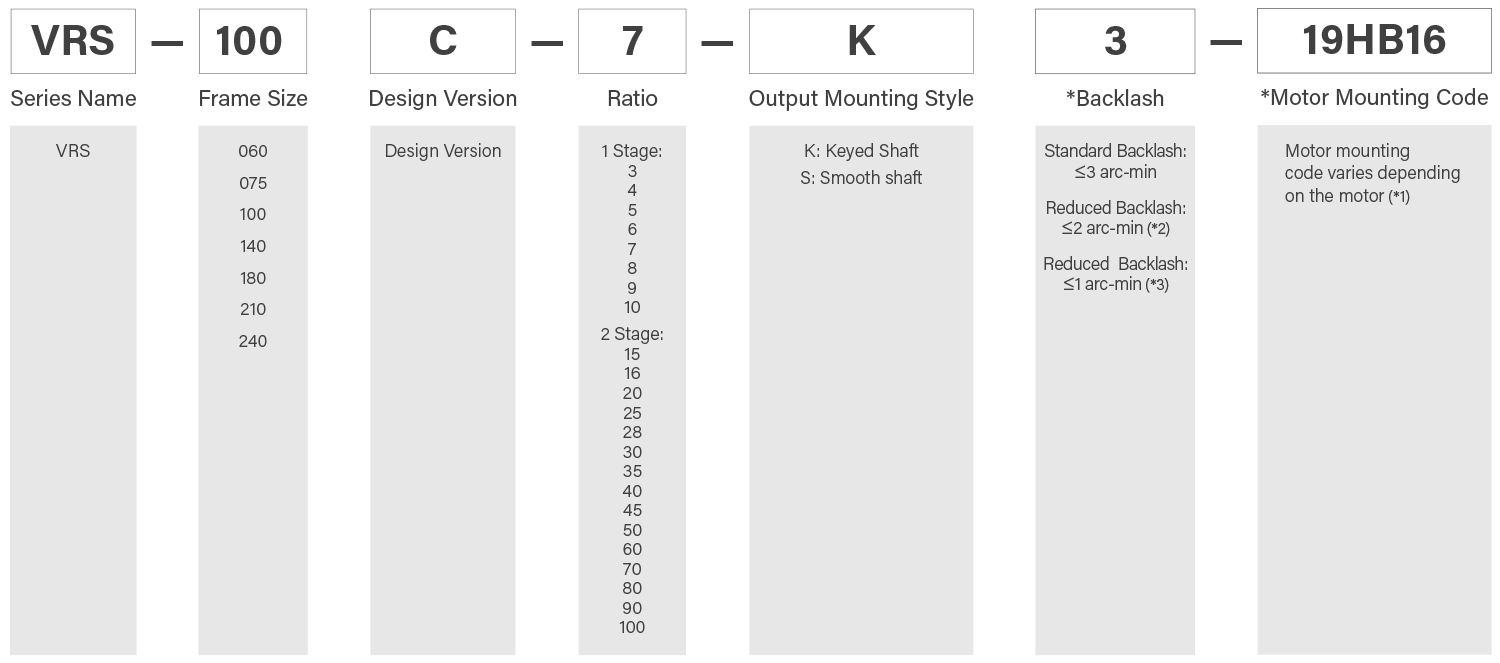

*1 Motor mounting code varies depending on the motor. Use the selection tool link below to configure the code.
*2 Sizes 060/075, Single Stage Only
*3 Sizes 100/140/180, Single Stage Only
