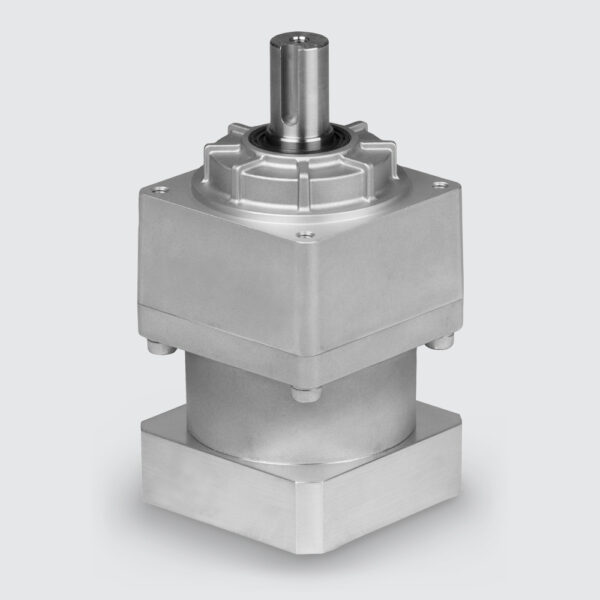

VRSF series inline planetary gear reducer vertical view

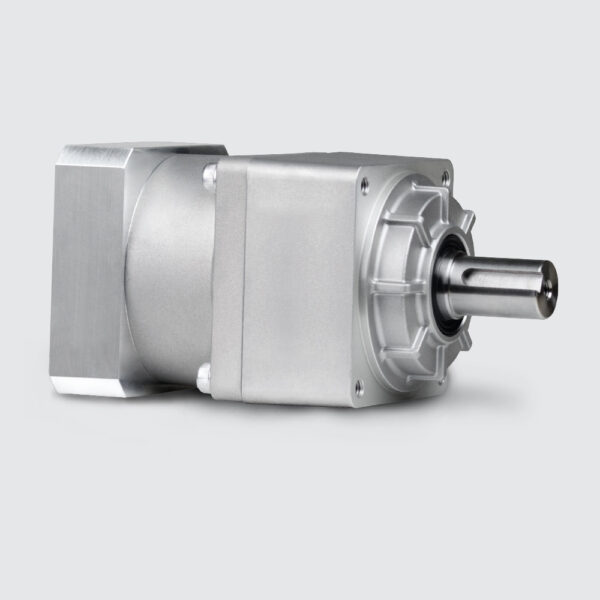

VRSF series inline planetary gear reducer horizontal side view
  1. VRSF series inline planetary gear reducer vertical view
  2. VRSF series inline planetary gear reducer horizontal side view

VRSF Series

Inline Planetary Gear Reducer

The VRSF Series is a lightweight inline planetary gear reducer designed for lower-duty cycle servo and stepper motor applications where compact size and cost efficiency are important.

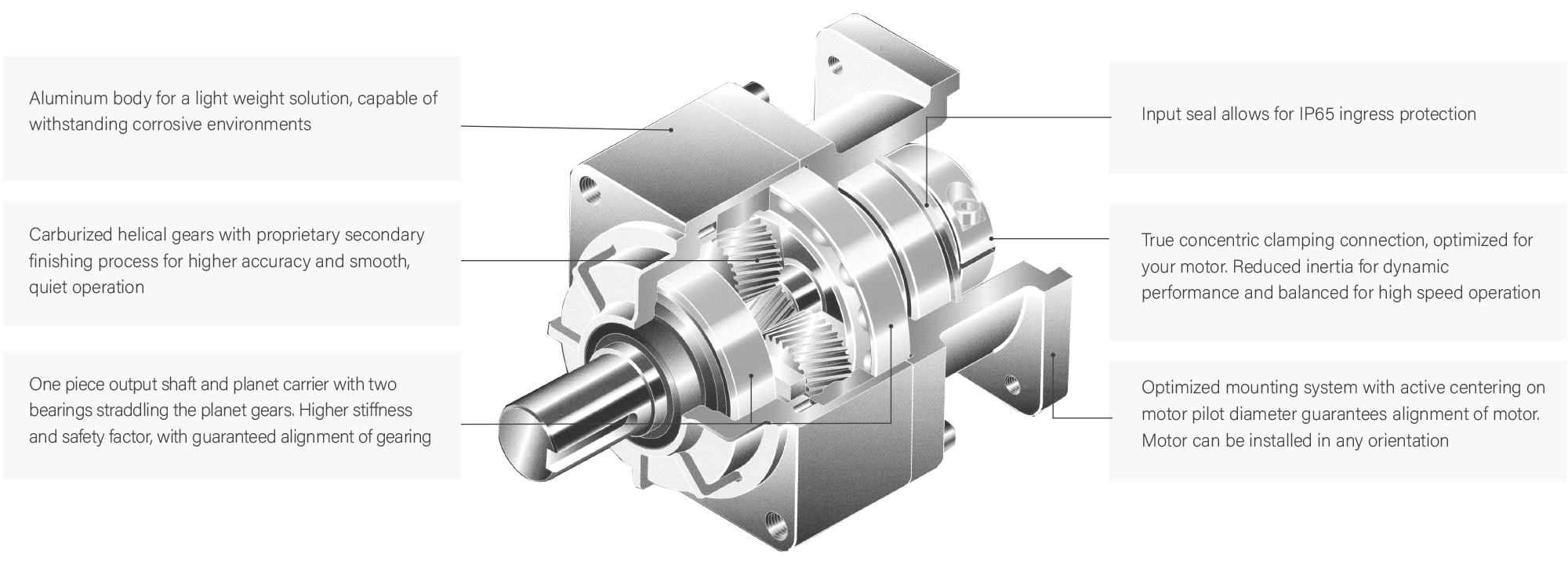

Featuring quiet helical planetary gearing and an aluminum housing, the VRSF Series provides smooth operation and reliable performance in high-volume automation equipment.

With standard backlash of 15 arc-minutes, and optional higher-accuracy configurations, the VRSF supports a range of motion control requirements where ultra-low backlash is not necessary.

Available in four frame sizes, the VRSF delivers peak output torque up to 274 Nm across nine reduction ratios. Optional NEMA output flange configurations allow for easy integration into many machine designs used in medical devices, packaging machinery, and other compact automation systems.

Frame Sizes

B
C
D
E
VRSF Series Catalog Download (1.8 MB)
