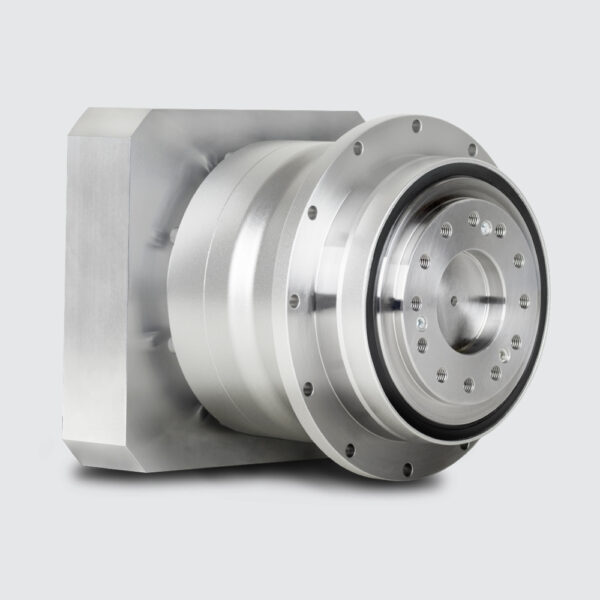

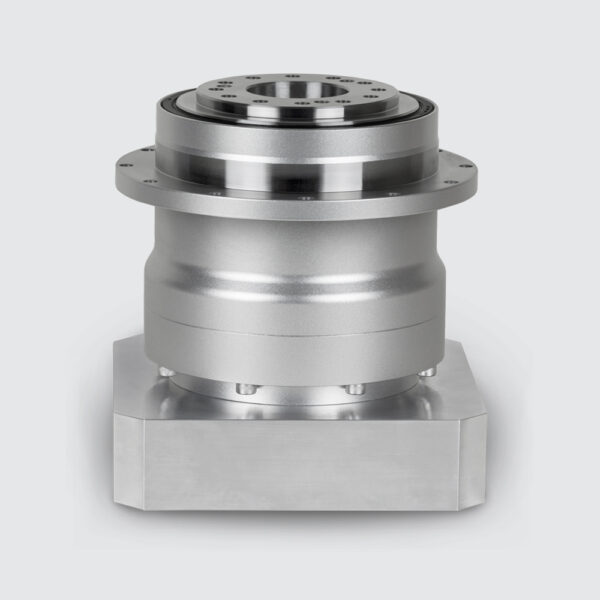

VRT series inline planetary gear reducer vertical view
VRT series inline planetary gear reducer horizontal side view
  1. VRT series inline planetary gear reducer vertical view
  2. VRT series inline planetary gear reducer horizontal side view

VRT Series

Inline Planetary Gear Reducer

The VRT Series is a high-rigidity inline planetary gear reducer designed for applications requiring exceptional torque density, torsional stiffness, and precise indexing performance.

Featuring an ISO robot flange interface, the VRT Series enables direct mounting of pinions, pulleys, turntables, and indexing mechanisms. This hub-style output design simplifies installation and reduces assembly time in high-performance automation equipment.

With standard backlash of <3 arc-minutes, and reduced options down to <1 arc-minute, the VRT delivers outstanding positioning accuracy for robotics, dial tables, and high-speed indexing systems.

Seven frame sizes and a wide range of single- and two-stage ratios provide flexibility across demanding motion control applications such as robotic transfer systems, 7th-axis robot shuttles, end-of-arm tooling, and precision automation machinery.

Frame Sizes

047
064
090
110
140
200
255
285
VRT Series Catalog Download (2.11 MB)
Request a Quote for VRT Series

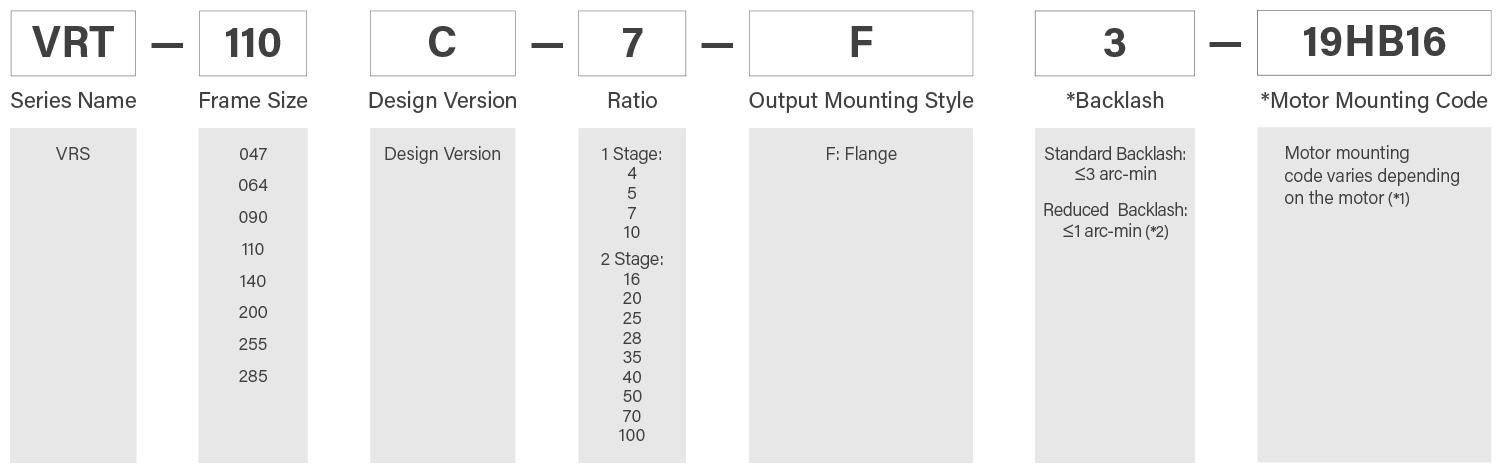

*1 Motor mounting code varies depending on the motor. Use the selection tool link below to configure the code.
*2 Sizes 090/110/140/200 Only
