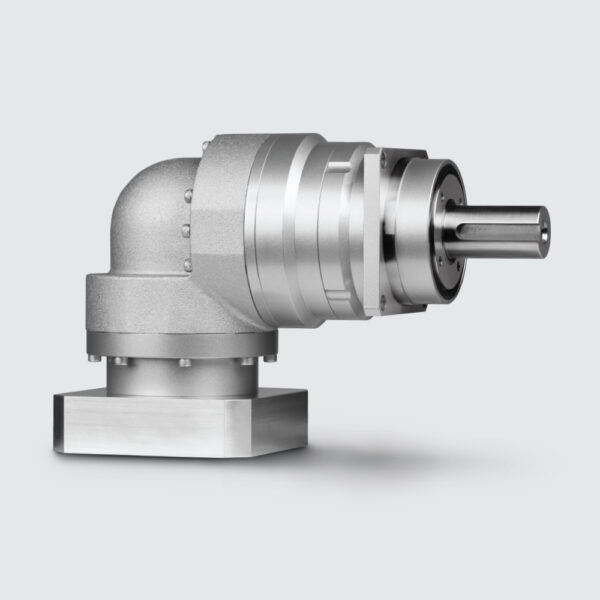

EVS series right-angle planetary gear reducer side view

EVS Series

Right-angle Planetary Gear Reducer

The EVS Series is a high-torque right-angle planetary gear reducer designed for demanding positioning accuracy and dynamic performance. As the right-angle counterpart to the VRS inline series, it delivers compact construction with enhanced rigidity for precision motion applications.

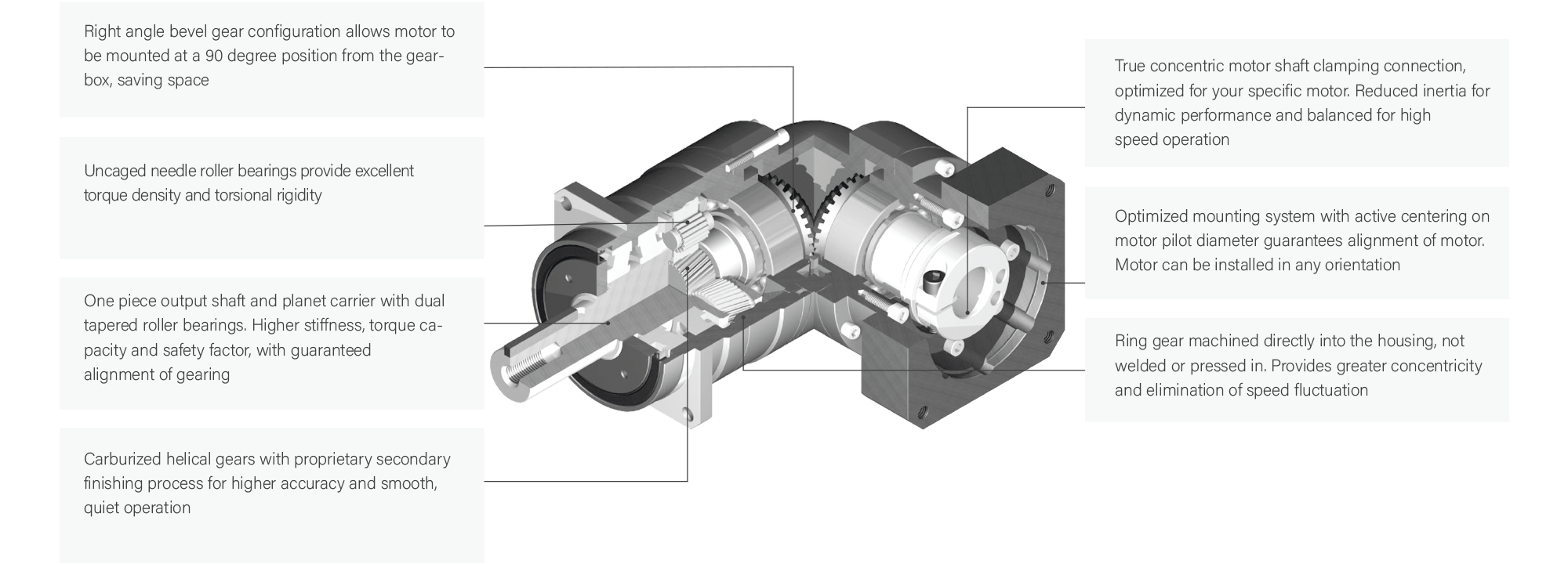

With ≤4 arc-min backlash and dual row of tapered roller bearings, the EVS Series maintains smooth, quite operation under high radio and axial loads. Its robust bearing design ensures stability even in applications exposed to significant dynamic and static forces.

Maximum acceleration torques up to 2960 Nm make the EVS Series well suited for machine tool, robotics, and high-capacity servo systems where standard planetary solutions are insufficient.

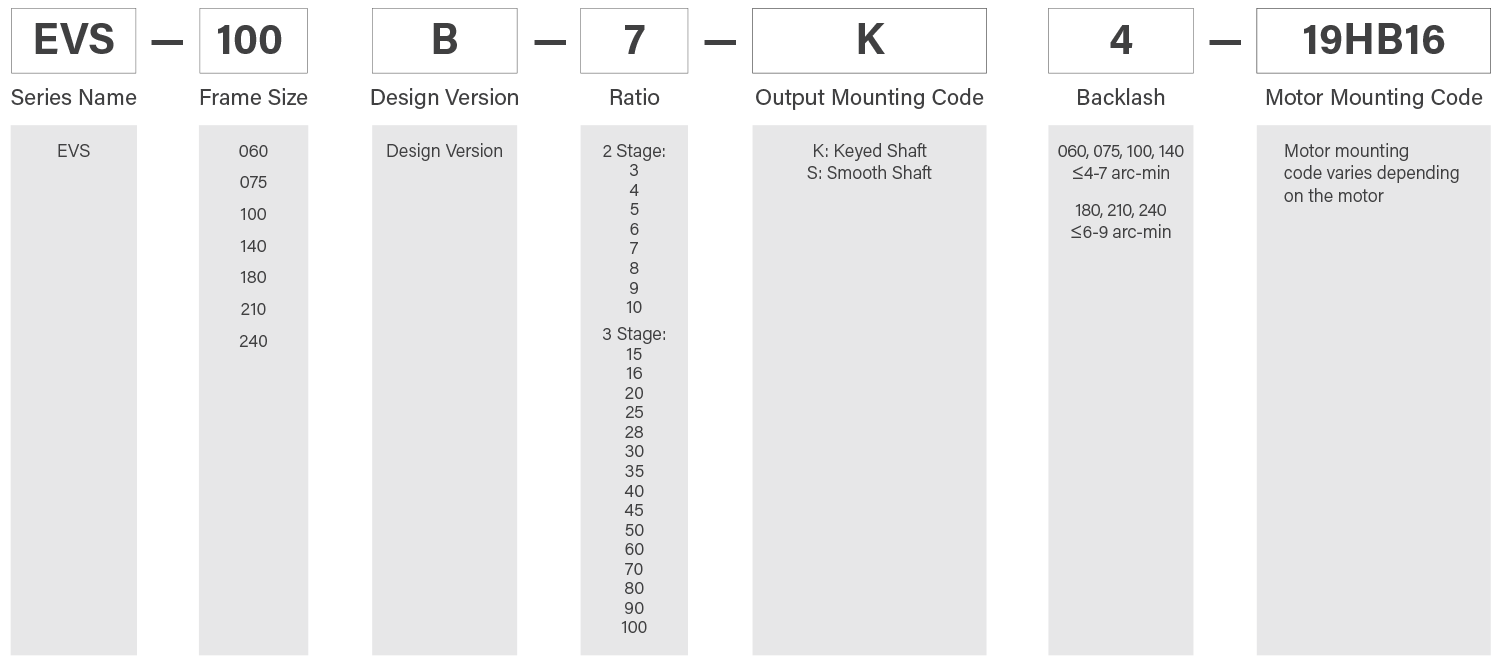

Frame Sizes

060
075
100
140
180
210
240
EVS Series Catalog Download (4.85 MB)
