EVT series right-angle planetary gear reducer side view
EVT series right-angle planetary gear reducer side view

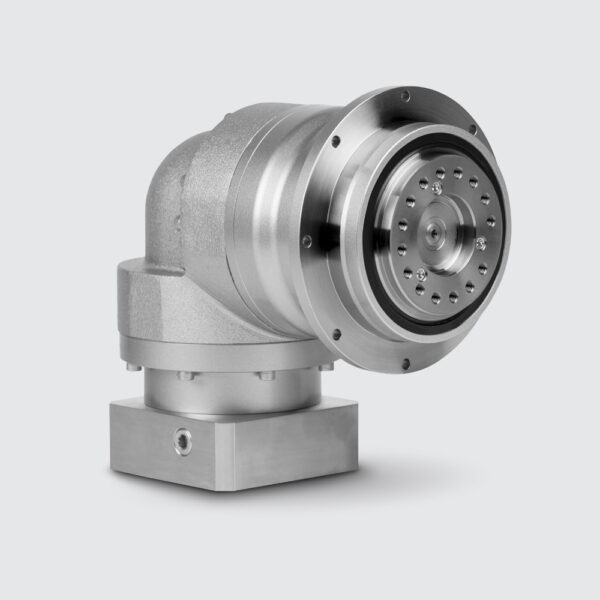

  1. EVT series right-angle planetary gear reducer side view

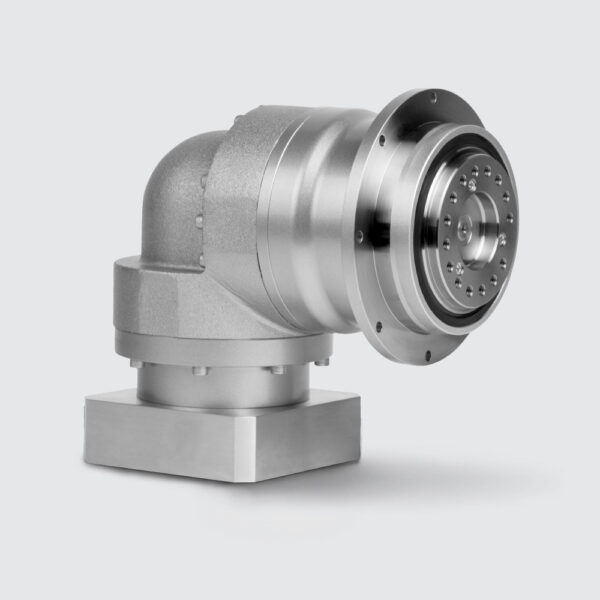

  2. EVT series right-angle planetary gear reducer side view

EVT Series

Right-angle Planetary Gear Reducer

The EVT Series is a compact right-angle planetary gear reducer designed for applications requiring high torque density, torsional rigidity, and precise positioning in space-constrained machine designs.

Featuring an ISO robotic mounting interface, the EVT Series enables direct mounting of pinions, pulleys, and turntables, simplifying installation and improving system rigidity in high-performance automation equipment.

With ≤4 arc-minute backlash, the EVT delivers excellent positioning accuracy for robotics, machine tool, and high-dynamic automation applications where minimal installation envelope is required.

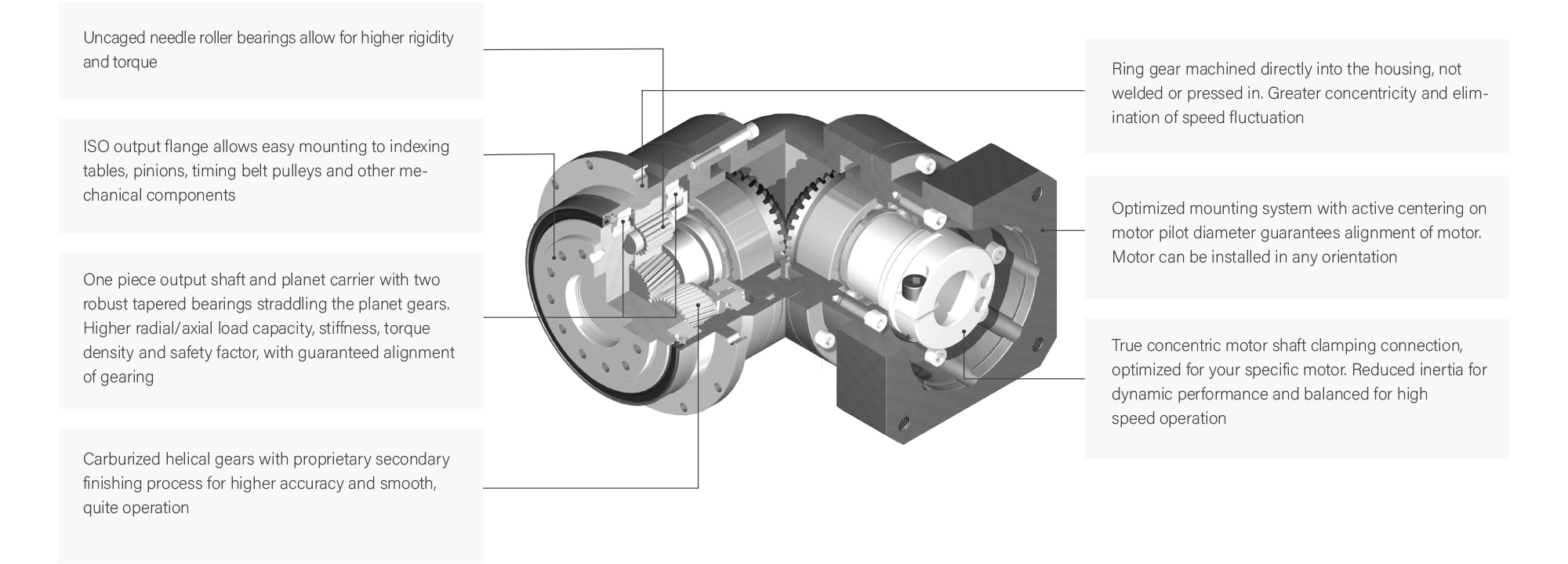

A robust internal design with tapered roller bearings provides exceptional torsional stiffness and allows the reducer to withstand demanding radial and axial loads. The maintenance-free design is lubricated for life and supports flexible mounting in any orientation.

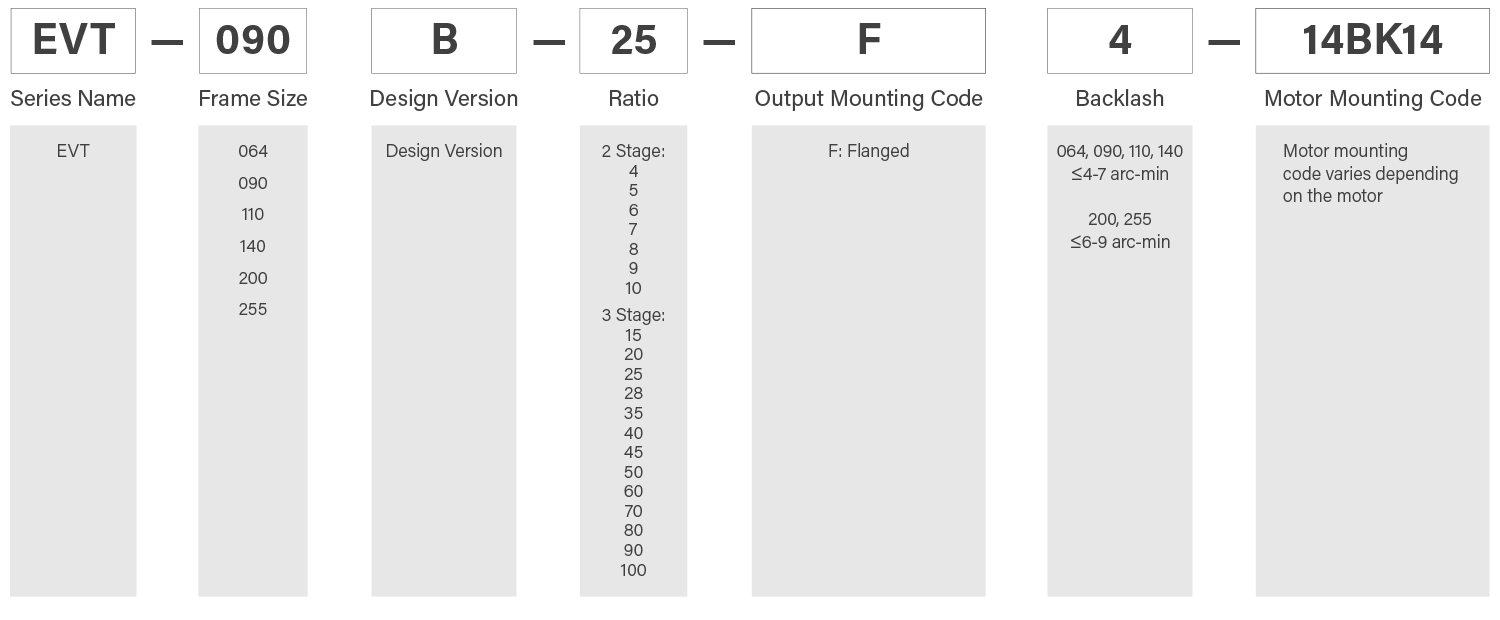

Frame Sizes

064
090
110
140
200
255
EVT Series Catalog Download (4.85 MB)
Request a Quote for EVT Series
